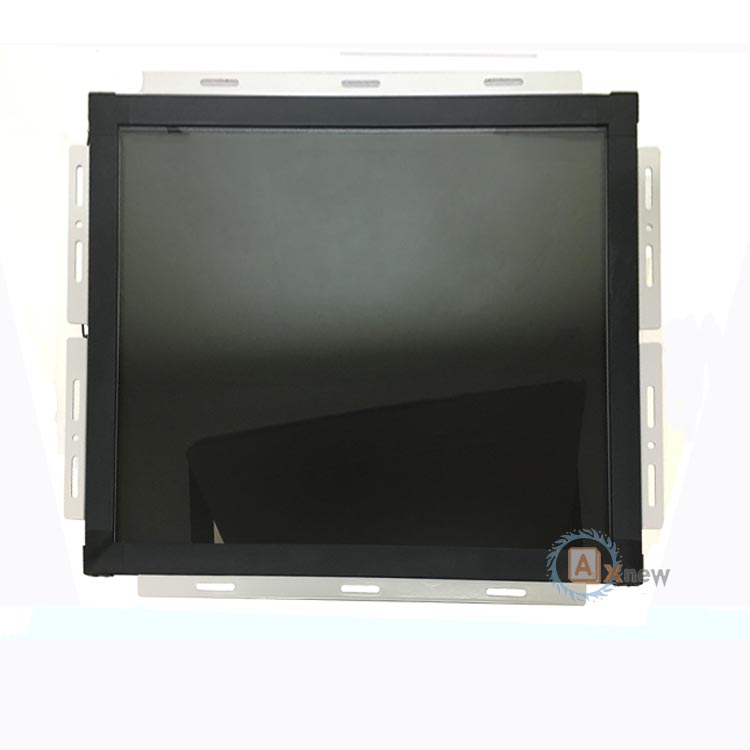

Rugged Digital 19 inch Open Frame LCD monitor with Saw touch waterproof vandal proof

  • 1
  • 2

Brand Name : axnew

Model Number : AXD-19OPT3P1

Certification : CE FCC Rohs

Place of Origin : China

MOQ : 5 unit

Price : US$100-US$200

Payment Terms : T/T, Western Union

Supply Ability : 1000 Units/month

Delivery Time : 5-7 working days

Packaging Details : 2 units/carton

Name : Open Frame Lcd Monitor with Saw touch

Size : 19 inch

Resolution : 1280x1024

Touch Type : anti-vandal water proof saw touch

Signal Inputs : VGA, DVI-D

Applications : Kiosks ATM, VTM

Contact Now

Rugged19 inch Digital Open Frame LCD monitor with Saw touch waterproof vandal proof


Display Specifications
Display19" Color TFT Industrial saw touch screen LCD Monitor
Model NameAXD-19OPT3P1
Active Display Area (mm)376.3 (H)x301.1(V)
Pixel Pitch (mm)0.294(H)x0.294(V)
Resolution (Pixel)SXGA (1280X1024) 16.7 M
Brightness (CD/m^2)350cd/m^2(Typ.)
Contrast Ratio1000:1
Viewing Angle (CR >=10)170/160
Power consumption18.5W typical, normal operation
Touch Screen
TypeSAW Touch(Anti-vandal,IP6front bezel)
Surface Hardness6H
Durability50 Million Multi-touch
Transparency92%



I/ORGB analog(VGA)x1, DVI-Dx1;12V DC2.1 Jackx1;USBx1( for the touch connection only)
OSD6 Keys on the backside
Voltage ConsumptionAC 100~240V,Universal,±10% ; AC/DC 12V4A
3.3W typical, normal operation



Mechanical Specifications
ConstructionSteel chassis & Black Color
Dimensions455.5x 378.0X51.5 (mm)
MountingEdge locking ,fixing holes embedded
Environment Specifications
Operating Temperature-10~60℃
Storage Temperature-20~70℃
Ordering Information19” touch Monitor 350nits With SAW Touch AXD-19OPT3P1


Features and Advantages
1. 19''1280x1024 New and Industrial panels with stable supply
2. Slim and simple open frame to mount all the LCD kits in one , which is easily installed
3. industrial control board supports the displays working 24 hours
4. Professional and industrial hardware and parts to guarantee its working normally in rough environment
5. VGA DVI interfaces ;SAW Touch screen 6.8mm thickness to protect the LCD

Rugged Digital 19 inch Open Frame LCD monitor with Saw touch waterproof vandal proof
