650cd/m2 1280X800 Open Frame Touch Screen Embedded 10.1 Capacitive 8.52W

Product Categories
AXNEW DISPLAY TECHNOLOGY CO.,LTD
Contact Now

650cd/m2 1280X800 Open Frame Touch Screen Embedded 10.1 Capacitive 8.52W

  • 1
  • 2

Brand Name : AXNEW

Model Number : AXD-10OPN1P1-T6

Certification : CE/ROHS

Place of Origin : Shenzhen China

MOQ : 10 Pieces

Price : negotiation

Payment Terms : T/T, Paypal, Western Union

Supply Ability : 3000 pieces/month

Delivery Time : 10-15 working days

Packaging Details : 3 Pcs /Carton with firm foam

Brightness : 650cd/m2

Contrast Ratio : 800:1

Pixel : 1280X800

Screen Size : 10.1 inch

Application : industrial|Kiosk|POS

Feature : HD|slim|thin|high definition

Contact Now

Embedded 10.1 Capacitive Open Frame Touch Screen Display 1280X800 Pixel


10.1  inch industrial touch LED ; 10.1 inch  monitor with capacitive touch screen, industrial controller board with VGA  input
used for Automatic equipments, Gas Station ,Advertising , vending embedded system, ATM application etc.

Quick Details:


Model:AXD-10OPN1P1-T6

Screen Size:10.1’’

Screen format: 16:10

Display Resolution(pixel):1280x800

Contrast Ratio:800:1

Brightness:650cd/m^2

Storage temperature : -20℃~70℃

Input signal: VGA/HDMI

Power Input: AC100~240 V/DC 12V
Touch Type: capacitive touch panel

Product status: Stock


Features and Advantages

1. New and Industrial A grade perfect panels with stable supply
2. Wide viewing angle with IPS technology LCD screen with led backlight low consumption
3. Control board supports the displays with VGA and DVI options.



Display Specifications



Display

10.1" TFT IPS LCD with LED Backlight

Model Name

AXD-104OPN1P1-T6

Active Display Area (mm)

216.96(H) x 135.6 (V)

Pixel Pitch (mm)

0.1695 (H) x 0.1695 (V)

Resolution (Pixel)

SVGA (1280X800) 16.2M Color

Brightness (CD/m^2)

650cd/m^2

Contrast Ratio

800:1

Viewing Angle (CR >=10)

170/170

Power consumption

8.52W typical, normal operation

Touch Screen

Capacitive touch panel

OSD Control

On the back side

I/O Connectors

1x12v,1XVGA,HDMI

Power Input

DC 12V,4A 48W

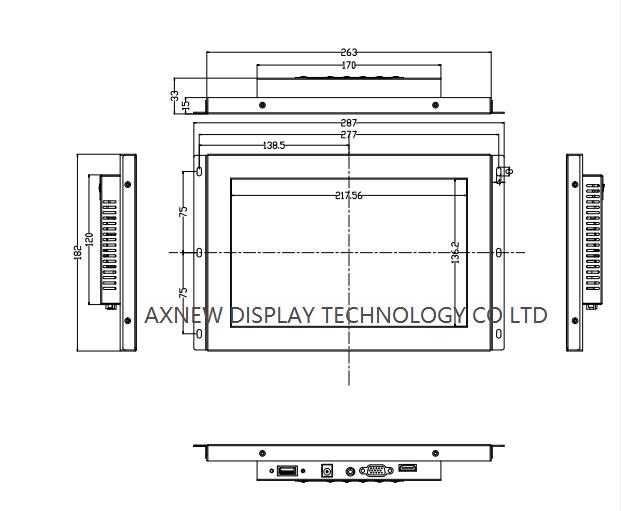

Mechanical Specifications



Construction

rugged open frame with edge fixings

Dimensions

287 x 185 x33 (mm)

Mounting

Embedded, edge fixing

Power source

AC 100~240V/ 12V DC

Environment Specifications



Operating Temperature

-10~60℃

Storage Temperature

-20~70℃

Rating

Facilitate installation of the demolition, solid portfolio

Ordering Information

10.1”  industrial  touch display


Packaging & Delivery



Packing details

1x 10.1 inch Industrial Touch Screen Monitor;
Packed in 5 pieces/carton with protection foam
Optional accessories: 1xHDMI , 1x Power supply cable, 1x power  adapter

Delivery terms

7- working days for stock products after receiving payments;  15 working days for order production




650cd/m2 1280X800 Open Frame Touch Screen Embedded 10.1 Capacitive 8.52W

650cd/m2 1280X800 Open Frame Touch Screen Embedded 10.1 Capacitive 8.52W
650cd/m2 1280X800 Open Frame Touch Screen Embedded 10.1 Capacitive 8.52W
