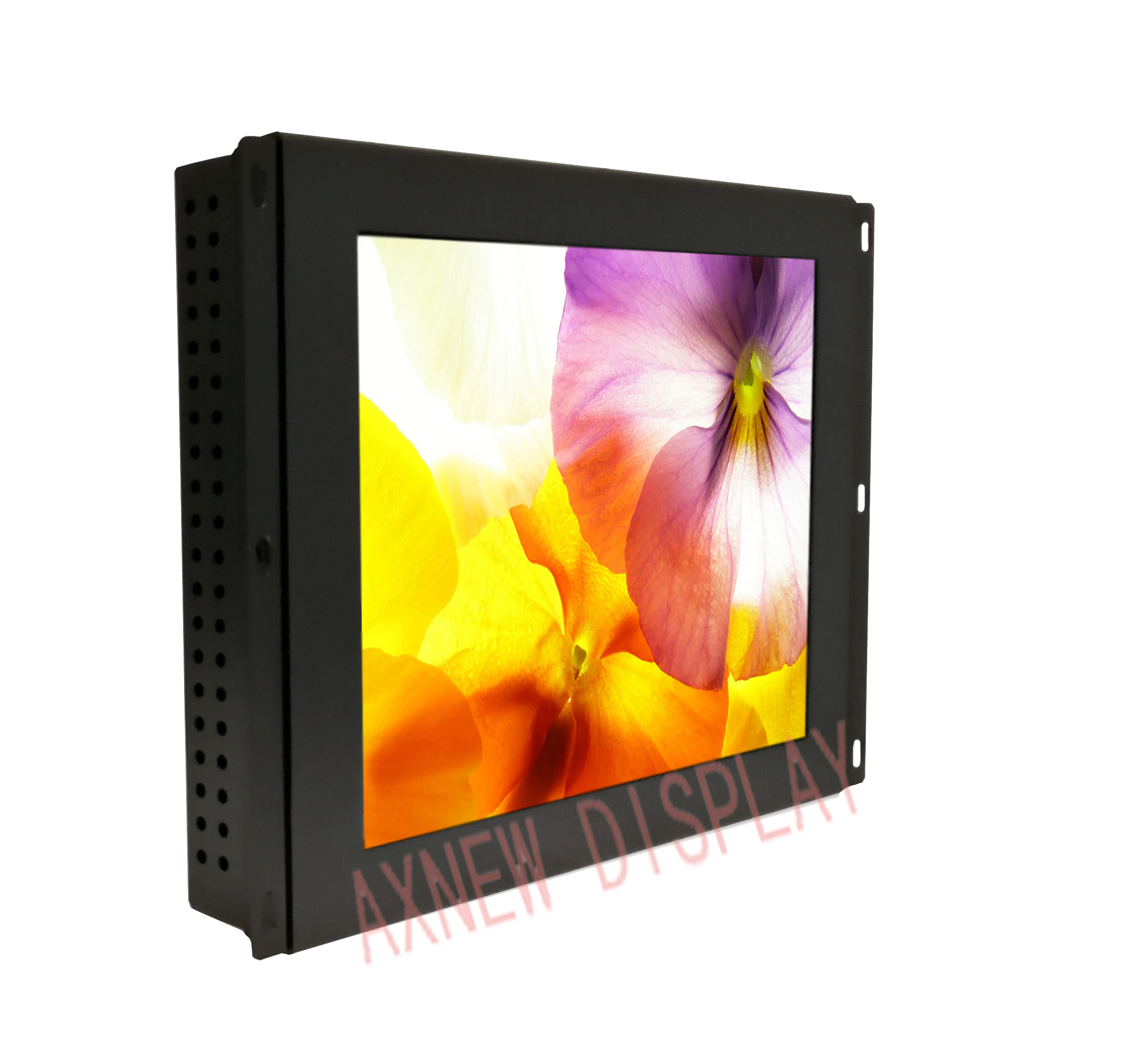

HDMI 8 Inch Open Frame Touch Monitor With Anti-vandal Projected Capacitive Touch

Product Categories

AXNEW DISPLAY TECHNOLOGY CO.,LTD

Contact Now

Name: HDMI 8 Inch Open Frame Touch Monitor With Antivandal Projected Capacitive Touch
Brand: AXNEW
Price: 1 USD

Brand Name : AXNEW

Model Number : AXD-08OPN1P3-T4

Certification : CE/FCC/ROHS

Place of Origin : Shenzhen China

MOQ : 10 Pieces

Price : negotiation

Payment Terms : T/T, Paypal, Western Union

Supply Ability : 1000 pieces/month

Delivery Time : 10 working days

Packaging Details : 10 Pcs /Carton with firm foam

Monitor type : 8 " TFT Active Matrix LCD with LED Backlight

Brightness : 250cd/m^2

Contrast Ratio : 500:1

Screen Size : 8.0 inch

Pixel : 800 x 600,

Feature : HD|slim|thin

Panel Type : TFT

Touch Type : pro-capacitive touch eeti

Contact Now

LCD monitor information
Model Number	AXD-08OPN1P3-T4(VGA; HDMI)
8’’ Touch LCD display
Type	8 " TFT Active Matrix LCD with LED Backlight
Active Display Area(mm)	162.0(H)x121.5(V)
Pixel Pitch(mm)	0.213(H)x0.213(V)
Resolution	800 x 600,
Contrast Ratio	500:1 (typ.)
Display Color	16.7 M colors
Brightness	250(Typ)
Viewing Angles	140(H);120(V)
Response Time	10ms/15ms

Environmental Temperature
Operating Temperature	-10℃~70℃
Storage Temperature	-20℃~80℃

Signal Input
PC	RGB analog; HDMI
Other connections	1X DC Jack 2.1; 1xUSB for touch connection

Power Specification
Voltage Consumption	AC 100~240V,Universal,±10% ; AC/DC 12V4A
3.3W typical, normal operation

Touch Screen Optional
touch panel Type	Pro-Capacitive Touch screen anti-vandal
Touch interface	USB
Transmittance	>=92%
Input voltage	3.3V-5.5V
working temperature	-10℃~65℃
touch kits	>=50,000,000 times in one position

Dimensions
Construction	Rugged chassis & Black Color
Holes fixings	Right Left fixing holes
Mechanical dimensions	223.0 x 158.0x 31.0 (mm)
Drawings	Please contact us for details

HDMI 8 Inch Open Frame Touch Monitor With Anti-vandal Projected Capacitive Touch
