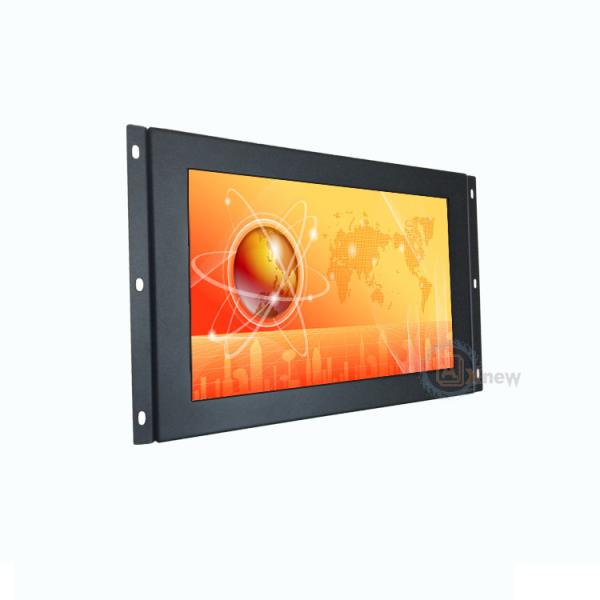

1280X800 650nits Capacitive Touch Monitor 10.1 Inch

Name: 1280X800 650nits Capacitive Touch Monitor 101 Inch
Brand: Axnew
Price: 1 USD

Buy cheap 1280X800 650nits Capacitive Touch Monitor 10.1 Inch product

Brand Name : Axnew

Model Number : AXD-10OPN1P1-T6

Certification : CE FCC Rohs

Place of Origin : China

MOQ : 5 Pieces

Price : negotiation

Payment Terms : T/T, Paypal, Western Union

Supply Ability : 1000 pieces/month

Delivery Time : 10-15 working days

Packaging Details : 10Pcs /Carton with firm foam

Screen Size : 10.1inch

pixel : 1280X800

Contrast Ratio : 800:1

Brightness : 650nits

Viewing Angles : 170(H)/170(V)

Input signal : VGA/DVI

Monitor type : Pro-capacitive touch screen

Contact Now

10.1 inch 650 cm/d2 Capacitive Open Frame Touch Screen Monitor 1280X800 Pixel

10.1 inch industrial touch LED ; 10.1 inch monitor with capacitive touch screen, industrial controller board with VGA input used for Automatic equipments, Gas Station ,Advertising , vending embedded system, ATM application etc.

Quick Details:

Model:AXD-10OPN1P1-T6	Screen Size:10.1’’
Screen format: 16:10	Display Resolution(pixel):1280x800
Contrast Ratio:800:1	Brightness:650cd/m^2
Storage temperature : -20℃~70℃	Input signal: VGA/DVI
Power Input: AC100~240 V/DC 12V Touch Type: capacitive touch panel	Product status: Stock

Features and Advantages

1. New and Industrial A grade perfect panels with stable supply

2. Wide viewing angle with IPS technology LCD screen with led backlight low consumption

3. Control board supports the displays with VGA and DVI options.

Display Specifications
Display	10.1" TFT IPS LCD with LED Backlight
Model Name	AXD-104OPN1P1-T6
Active Display Area (mm)	216.96(H) x 135.6 (V)
Pixel Pitch (mm)	0.1695 (H) x 0.1695 (V)
Resolution (Pixel)	SVGA (1280X800) 16.2M Color
Brightness (CD/m^2)	650cd/m^2
Contrast Ratio	800:1
Viewing Angle (CR >=10)	170/170
Power consumption	8.52W typical, normal operation
Touch Screen	Capacitive touch panel
OSD Control	On the back side
I/O Connectors	1x12v,1XVGA,DVI-D
Power Input	DC 12V,4A 48W
Mechanical Specifications
Construction	rugged open frame with edge fixings
Dimensions	287 x 185 x33 (mm)
Mounting	Embedded, edge fixing
Power source	AC 100~240V/ 12V DC
Environment Specifications
Operating Temperature	-10~60℃
Storage Temperature	-20~70℃
Rating	Facilitate installation of the demolition, solid portfolio
Ordering Information	10.1” industrial touch display

Packaging & Delivery

Packing details

1x 10.1 inch Industrial Touch Screen Monitor

Packed in 5 pieces/carton with protection foamOptional accessories: 1xVGA,

1x Power supply cable, 1x power adapter

Delivery terms

7- working days for stock products after receiving payments; 15 working days

for order production

Product Tags:

650nits Capacitive Touch Monitor

1280X800 Capacitive Touch Monitor

10.1 Inch Industrial Touch Screen Monitor

1280X800 650nits Capacitive Touch Monitor 10.1 Inch Images
