Full HD 15.6 Inch Open Frame LCD Monitor 1366x768 For Kiosks

Product Categories
AXNEW DISPLAY TECHNOLOGY CO.,LTD
Contact Now

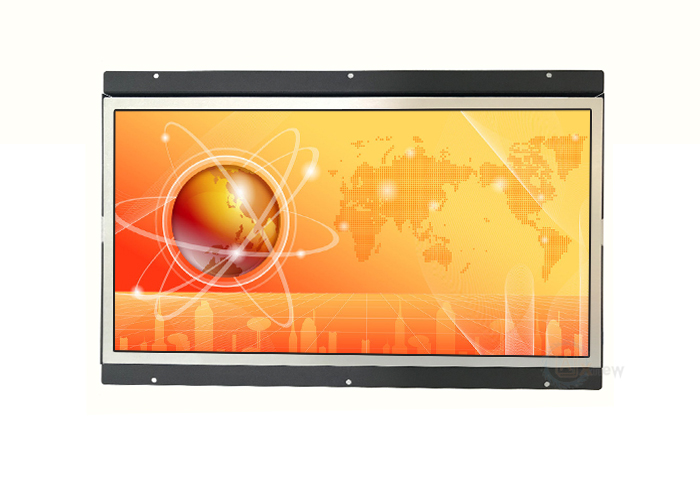

Full HD 15.6 Inch Open Frame LCD Monitor 1366x768 For Kiosks

  • 1
  • 2
  • 3

Brand Name : axnew

Model Number : AXD-15OPN1P3-V2W

Certification : CE FCC Rohs

Place of Origin : China

MOQ : 5 Pieces

Price : negotiation

Payment Terms : T/T, Paypal, Western Union

Supply Ability : 1000 pieces/month

Delivery Time : 10-15 working days

Packaging Details : 4 Pcs /Carton with firm foam

Screen Size : 15.6

Pixel : 1366x768

Contrast Ratio : 700:1

Brightness : 350nits

Input signal : VGA/DVI

Viewing Angles : 160(H)/140(V)

Contact Now

Display Specifications
Display 15.6" Color TFT Open Frame LCD Monitor
Model Name AXD-15OPN1P3-V2W
Active Display Area (mm) 344.16(H)x193.59(V)
Pixel Pitch (mm) 0.1795(H)x0.1795(V)
Resolution (Pixel) 1366x768
Brightness (CD/m^2) 350nits
Contrast Ratio 700:1
Viewing Angle (CR >=10) 160/140
Power consumption 10.6 W typical, normal operation
Touch Screen no touch in this case
OSD Control On the back side
I/O Connectors 1x12v,1XVGA,1xDVI, 1xHDMI
Power Input DC 12V, 4A 48W
Mechanical Specifications
Construction Steel housing & black Color, anti-vandal
Dimensions 397.0x 25270.0x43.0(mm)
Mounting Embedded ,up and down fixing holes, vesa75x75;100x100 Wall Mounting Optional
Power source AC 100~240V/ 12V DC
Environment Specifications
Operating Temperature -20~70℃
Storage Temperature -20~70℃
Rating Facilitate installation of the demolition,solid portfolio
Ordering Information 15.6” open frame lcd monitor with HDMI port



Features and Advantages
1. 15.6 inch open frame lcd monitor adopts1920x1080 Industrial A grade perfect panels
2. Slim and simple open frame to mount all the LCD kits in one , which is easily installed
3. industrial control board supports the displays working 24 hours, vga hdmi, DVI signal inputs
4. Professional and industrial hardware and parts to guarantee its working normally in rough environment
5. 15.6 inch open frame lcd could be installed for kiosks, Automatic equipments , industrial application,etc

6, it is one ecomonic design , can be installed the touch screen by customers themself.
